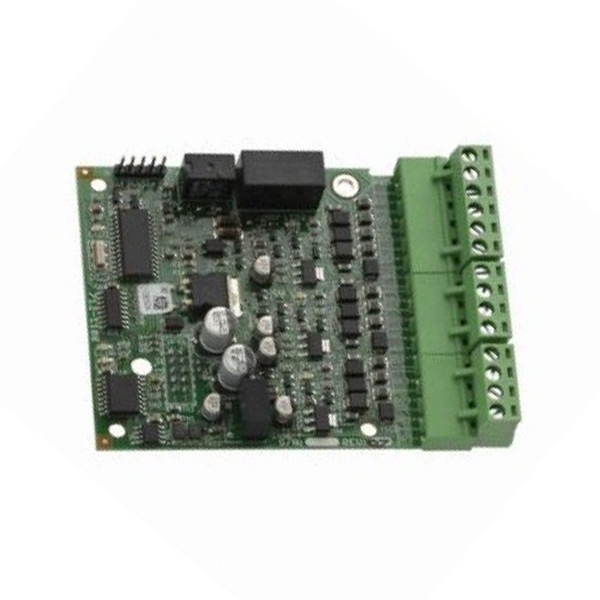

Routing / Protection Interface

Routing / Protection Interface

SKU: MXP-532F

The General Routing Interface General Routing Interface Card is an optional module to provide fire routing outputs compliant with BS EN54-2: 1998 Clauses 7.9 and 8.9 and BS5839-1:2002. EN54-2 compliant routing interfaces providing monitored outputs t… Read More

Key Features
  • Two fire routing outputs are provided to differentiate between Call Point (MCP) and Automatic Detector (AFD) fire alarm signals if required.
  • Outputs are monitored for open and short circuit wiring issues in both the quiescent and active states, and fault conditions reported on the panel (CIE) display/LED Indicators.
  • Outputs are compatible with a wide range of routing equipment.
  • Simple to install and configure
  • Monitored outputs
  • Wide range compatibility
Range:
MxPro 5

In Stock

Description

The General Routing Interface General Routing Interface Card is an optional module to provide fire routing outputs compliant with BS EN54-2: 1998 Clauses 7.9 and 8.9 and BS5839-1:2002. EN54-2 compliant routing interfaces providing monitored outputs to fire alarm and routing circuits. Circuits are monitored for open and short circuit conditions in both normal and active mode - compliance with EN54-2 and BS5839-1: 2002 Clause 12.2.1a The outputs will drive relay coils with impedances of between 1k and 5k. Can be used with all MxPro 5 series control panels programmed with version 50.07 software or later, compatible with the PC-Configuration tool from version 6.12 or later. The interface connects directly to peripheral bus connection in the panel.
