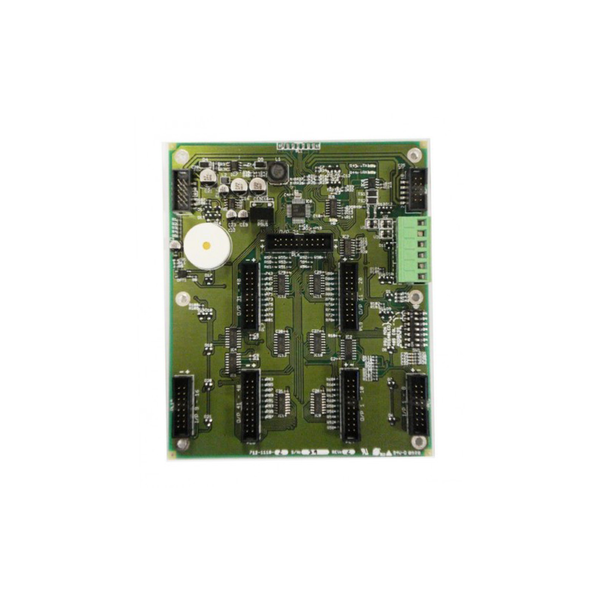

P-BUS MIMIC Driver card (16 input + 48 output)

P-BUS MIMIC Driver card (16 input + 48 output)

SKU: MXP-539

The 16-way Switch & 48 LED Card is an expansion peripheral that offers 16 inputs and 48 outputs that can be configured via the Advanced PC Config Tool. This additional PCB provides a cost effective solution to providing 16 individually programmable p… Read More

Key Features
  • 6 configurable clean-contact inputs
  • 48 programmable LED driver outputs
  • Configurable buzzer
  • Fast input response
  • Up to 16 switch plates for each control panel
  • No network interface required
Range:
MxPro 5

In Stock

Description

The 16-way Switch & 48 LED Card is an expansion peripheral that offers 16 inputs and 48 outputs that can be configured via the Advanced PC Config Tool. This additional PCB provides a cost effective solution to providing 16 individually programmable push buttons for controlling fire alarm equipment. Up to 16 cards can be connected to an MxPro 5 series panel providing a maximum of 256 push buttons and 768 LED outputs. Each LED output can be individually assigned to an output group to provide full support for dynamic zoning and to indicate when the buttons have been activated.
