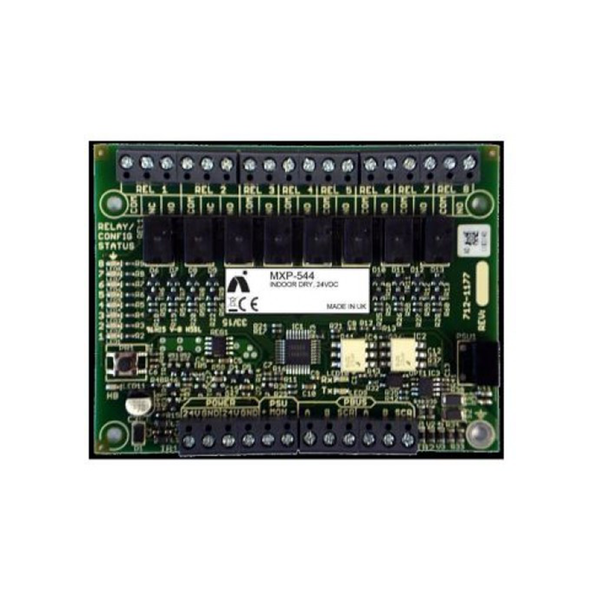

P-BUS 8-way relay card / Fitted

P-BUS 8-way relay card / Fitted

SKU: MXP-544F

The MXP-544 Peripheral 8-Way Relay Card is an internal module intended for use with the Mx-5000 range of fire alarm control panels. Each card provides 8 configurable relay outputs (2 x FORM C, 6 x FORM A). Up to 16 cards may be connected to a panel,… Read More

Key Features
  • Powered from CIE on local PSU
  • Provides 8 configurable relay outputs
  • Up to 16 cards can be connected to the peripheral bus = 128 relays
Range:
MxPro 5

In Stock

Description

The MXP-544 Peripheral 8-Way Relay Card is an internal module intended for use with the Mx-5000 range of fire alarm control panels. Each card provides 8 configurable relay outputs (2 x FORM C, 6 x FORM A). Up to 16 cards may be connected to a panel, allowing for an extra 128 relay outputs (SELV). The MXP-544 is configured using a positive action sequence involving the on-board push button and LED indicators. This allows the module to be safely configured/inspected while adding an extra reporting capability not previously available to peripheral modules. Cards are protocol independent.
