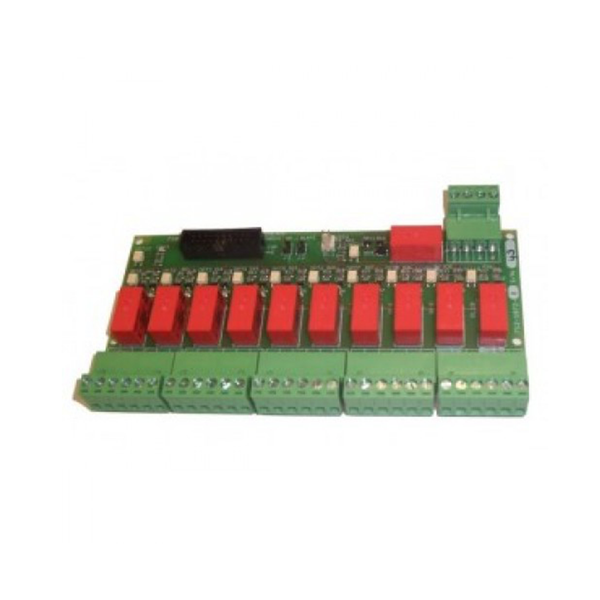

Mimic driven 10-way relay output card

Mimic driven 10-way relay output card

SKU: MXP-052

The Mxp-052 is a peripheral relay card providing ten 30V DC, 1A programmable relay outputs. The Mxp-052 connects directly to any of the DIL connectors of either the Network Mimic Mxp-020-100 LED Output Card or the General I/O controller Mxp-045 LED O… Read More

Key Features
  • Ten change-over contact outputs rated at 30V DC, 1A.
  • Up to 200 individual relay outputs fully programmable per mimic (excluding LEDs)
  • Ten individually programmable relay outputs per unit
  • DIN rail or screw fixing options
  • Separate isolate input (disables all outputs)
  • Separate isolate indication output
  • Fast instant response
Range:
MxPro 5

In Stock

Description

The Mxp-052 is a peripheral relay card providing ten 30V DC, 1A programmable relay outputs. The Mxp-052 connects directly to any of the DIL connectors of either the Network Mimic Mxp-020-100 LED Output Card or the General I/O controller Mxp-045 LED Output Card units via the supplied ribbon cable. Each output follows the cause and effect programming of the mimic unit output. This can be either a simple zone output or can be an individually programmed output group rule utilising the full range of features of the Mx-4000/5000 systems Dynamix zoning facilities.
