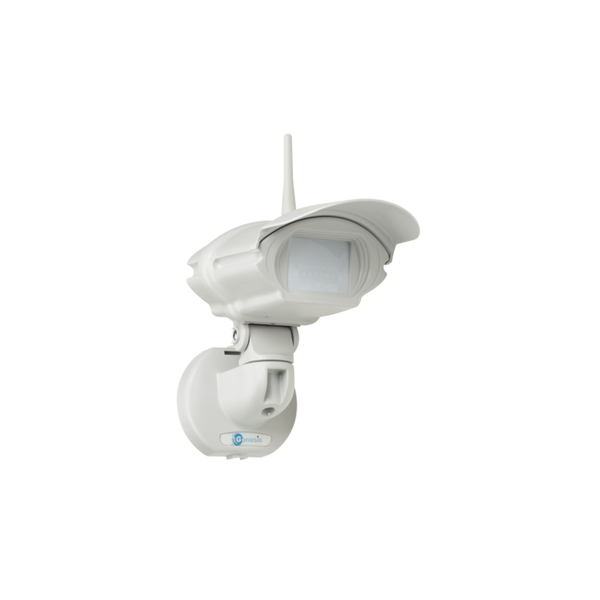

15m x 90° G1 wired PIR detector

15m x 90° G1 wired PIR detector

SKU: LGHW1520

Genesis 1 is a versatile PIR detector that uses sophisticated signal processing and optics to minimise nuisance alarms caused by the sun, shadows and reflections. Daylight and thermal sensors allow the unit to automatically compensate for varying cli… Read More

Key Features
  • BS8418 compliant
  • 15mx20m Detector lens
  • Normally closed alarm and tamper
  • Every 100m/s Periodic with lens type and PIR settings
  • Enclosure weatherproof to IP66. Polycarbonate with stainless steel locking bolts
  • Anti tamper enclosure
  • Temp range -10°C to +60°C
  • H183mm x W130mm x D187mm
  • Shock sensor

In Stock

Description

Genesis 1 is a versatile PIR detector that uses sophisticated signal processing and optics to minimise nuisance alarms caused by the sun, shadows and reflections. Daylight and thermal sensors allow the unit to automatically compensate for varying climate conditions, whilst the sensitivity of the pyro can be adjusted by changing the AB filtering settings which determine whether an alarm is generated depending on whether one (A or B) or both (A and B) infrared beams is crossed.

Download

LGHW1520.pdf
