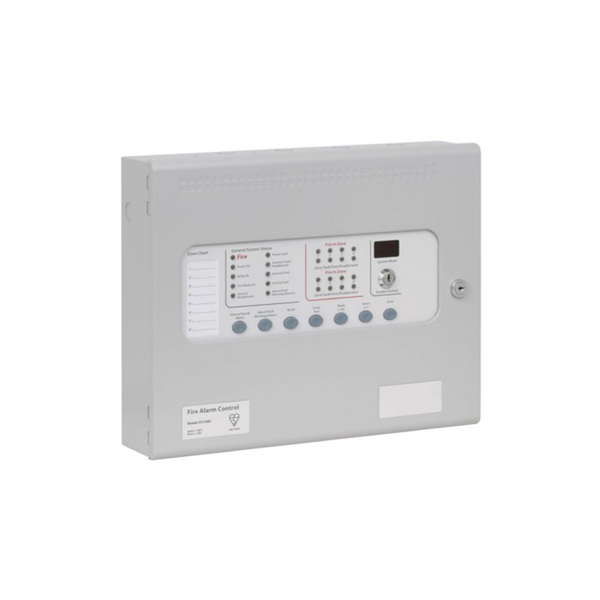

Kentec Sigma 2 Zone Alarmsense Panel - Surface

Kentec Sigma 2 Zone Alarmsense Panel - Surface

SKU: KA11020M2

The Sigma CP range consists of a series of conventional fire alarm control panels designed in accordance with European standards BS EN54-2 and BS EN54-4 Fire Detection and Fire Alarm systems - Control and Indicating Equipment. The range consists of 2… Read More

Key Features
  • Fully certified to BS EN54-2 and BS EN54-4
  • 2-wire and standard versions in 2, 4 or 8 zones
  • Compatible for use on BS5839: Part 1: 2002 installations
  • 2-wire repeaters and ancillary boards
  • Simple, single board construction
  • Installer friendly
  • Compatible with wide range of detection devices
  • Two monitored sounder outputs
  • 3 Amp power supply
  • Auxiliary power output
Range:
Sigma

Limited Availability

Description

The Sigma CP range consists of a series of conventional fire alarm control panels designed in accordance with European standards BS EN54-2 and BS EN54-4 Fire Detection and Fire Alarm systems - Control and Indicating Equipment. The range consists of 2, 4 and 8 zone control panels. All control panels are available in two versions: Sigma K11 range in which detectors and call points are wired on separate circuits to sounders (two sounder circuits are provided) & Sigma T11 range in which detectors call points and sounders are wired to the same pair of cables. Commonly referred to as a two-wire system. Wiring sounders to the detection circuits eliminates the need to install sounder circuit cables and also offers the ability to provide zoned or two stage sounder operation. (T series only) All control panels have an integral, mains powered battery charger and power supply designed in accordance with the requirements of BS EN54-4.

Download

KA11020M2.pdf
