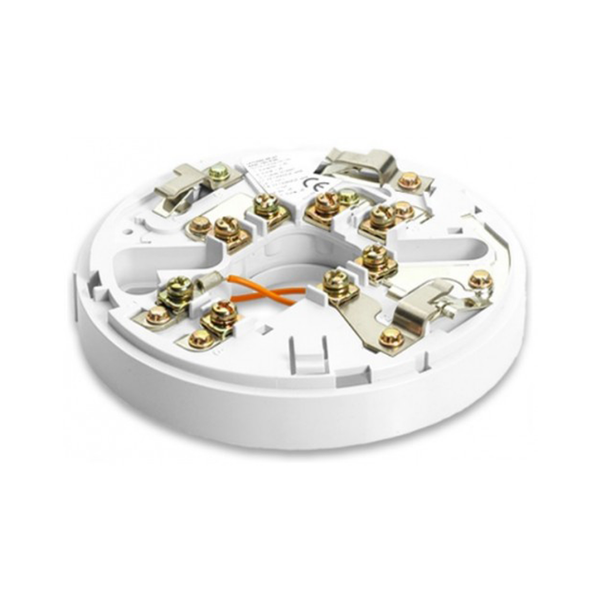

Hochiki Conventional Relay Base Latching - white

Hochiki Conventional Relay Base Latching - white

SKU: YBO-R/6R(WHT)

Model YBO-R/6R is a Conventional Detector Mounting Base associated with the New CDX Range of Detectors and is fully compatible with the majority of existing conventional fire alarm and security control panels. It is supplied with square cable clamps … Read More

Key Features
  • Integral remote indicator output
  • Wide voltage range - can be used in security systems
  • Rugged design
  • Quick connection via square cable clamps Accepts from 1 to 2.5 mm² cables
  • Takes 2.5 mm² cables
  • Bayonet slot, low insertion force for detectors
  • Approved by LPCB

Limited Availability

Description

Model YBO-R/6R is a Conventional Detector Mounting Base associated with the New CDX Range of Detectors and is fully compatible with the majority of existing conventional fire alarm and security control panels. It is supplied with square cable clamps for secure and reliable cable termination but the base does not provide line continuity during detector removal, therefore if Call Points are being used then these should be wired onto the zone first. The integrated third terminal provides remote indicator output.

Download

YBO-R.6R(WHT).pdf
