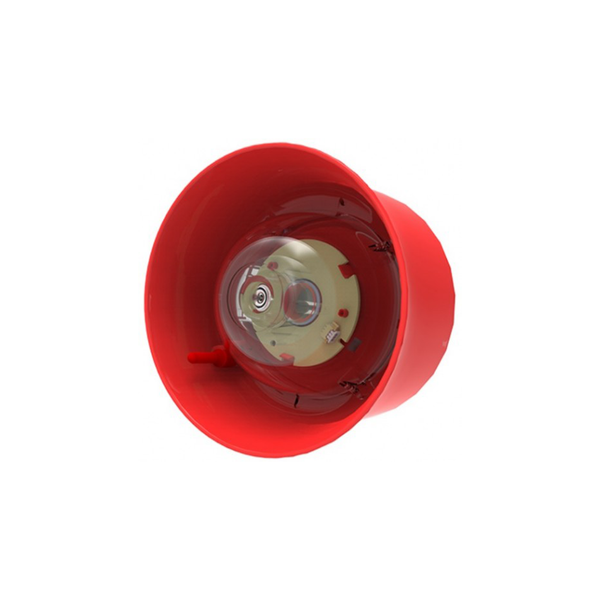

Hochiki Addressable Wall Sounder VAD - RB, RF

Hochiki Addressable Wall Sounder VAD - RB, RF

SKU: CHQ-WSB2/RL

Model CHQ-WSB2/RL is an EN54-23 compliant addressable loop powered Wall Sounder Beacon innovatively designed to provide a range of tones and volumes with a maximum output of up to 102dB(A) (±2dB(A)) with low current consumption. The unit features an … Read More

Key Features
  • Single Loop Address
  • Variable Sound Output 90 ~ 102 dB(A)
  • Sounder and Beacon can operated independently
  • 0.5 or 1Hz flash frequency
  • High Intensity LED technology
  • Fits Hochiki Standard or Isolator Base
  • 51 User-Selectable Tones (all tones EN54-3 approved)
  • Auto-Shutdown feature prevents noise pollution
  • ‘O’ Rated Beacon to EN54-23
  • Available with Red or White LEDs/Case

In Stock

Description

Model CHQ-WSB2/RL is an EN54-23 compliant addressable loop powered Wall Sounder Beacon innovatively designed to provide a range of tones and volumes with a maximum output of up to 102dB(A) (±2dB(A)) with low current consumption. The unit features an integral beacon within the horn utilising high intensity LED technology and is designed to fit to the Standard Base (YBO-R/3(RED)) or the Isolator Base (YBO-R/SCI(RED)). The sounder is IP rated to IP21 for internal use but it can be made weather-proof by utilising the WS2-WPK Weather-proof Kit, which consists of a specialised back box and gasket set. Also incorporates an auto shutdown mode* which allows the user to set a fixed time within which the sounder will operate, before automatically silencing itself, ideal for minimising noise pollution.

Download

CHQ-WSB2.RL.pdf
