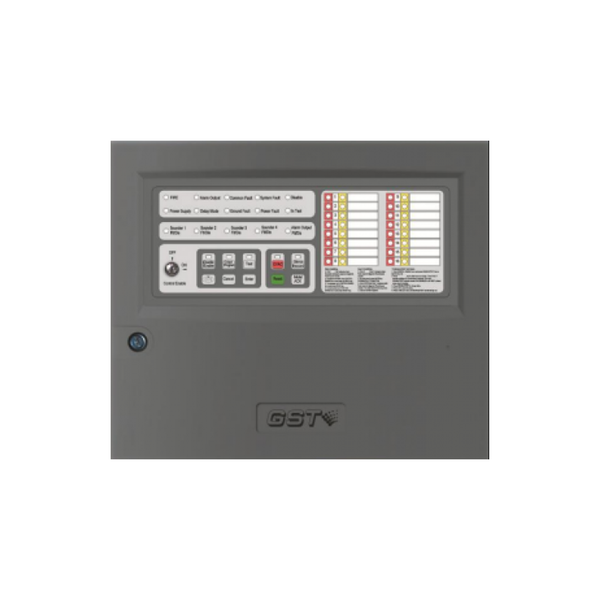

GST Conv. CIE, 16 Zone

SKU: GST116A

The GST116A is compatible with GST conventional detectors, manual call points and sounders. The panel is easy to install and operate. Control functions are enabled by key switch whilst programming functions are enabled by key switch in combination wi… Read More

Key Features
  • 16 Detection zones
  • Each zone can support up to 15 conventional detectors or 32 manual call points, to a combined total of 32 devices.
  • Short and open circuit reporting of detection zones, sounder and alarm outputs
  • Space provided inside the CIE cabinet for 2 SLA batteries for standby support
  • Easy enable/disable operation for zones, sounder and alarm outputs
  • Alarm test function selectable with or without sounder notification
  • Programmable output for linking zones and sounder outputs, alert or evacuate tone, with or without delay
  • Day/Night mode selectable
  • Silence/Reset/Test modes selectable to local requirements
  • Three access levels configurable via key control

Limited Availability

Description

The GST116A is compatible with GST conventional detectors, manual call points and sounders. The panel is easy to install and operate. Control functions are enabled by key switch whilst programming functions are enabled by key switch in combination with an internal switch.

Download

GST116A.pdf
