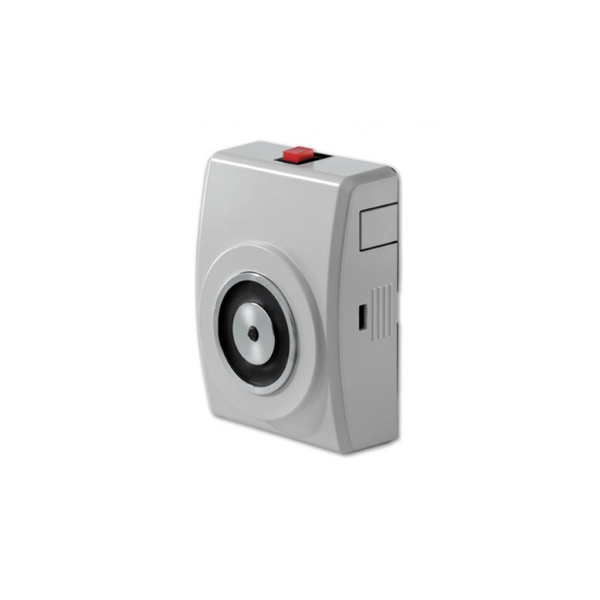

Door Holder, Surface Mount, 400N, Mains Powered

Door Holder, Surface Mount, 400N, Mains Powered

SKU: FE290

The FE290 is a mains powered surface mount door holder, in a Bayblend housing, which offers a 400N holding force and a release button. Cable entry is possible from the back or from the sides, and the release button can be located at the top, or one o… Read More

Key Features
  • Low power - 1.6 W
  • 400 N holding force
  • Anti-remnant ejector
  • Spark suppression diode and reverse polarity protection
  • Release button
  • EN1155 approved
  • Keeper plate included

Limited Availability

Description

The FE290 is a mains powered surface mount door holder, in a Bayblend housing, which offers a 400N holding force and a release button. Cable entry is possible from the back or from the sides, and the release button can be located at the top, or one of the sides. The magnet is constructed with a pressed coil and anti-remenance pin, giving it a protection of IP54. The protection diodes are integrated into this construction. The plastic housing is manufactured from Bayblend and contains 30% PA6 glass fiber, which makes it much stronger than standard ABS. Bayblend offers high heat resistance, high impact and notched impact strength, and high stiffness and dimensional stability.

Download

FE290.pdf
