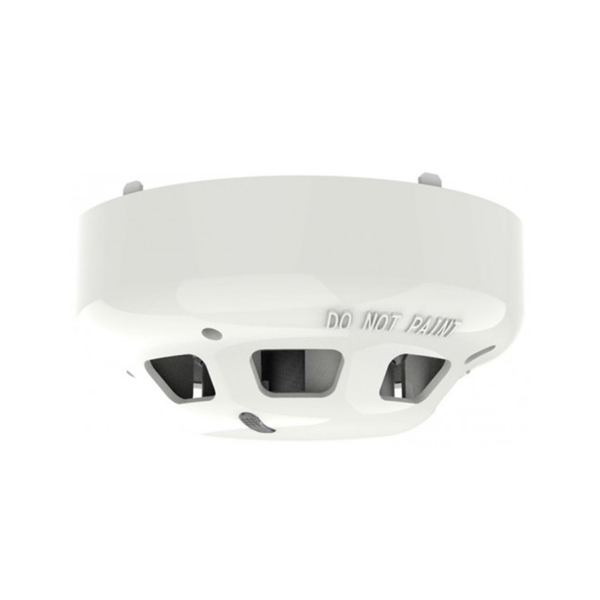

Conventional Marine Approved Photoelectric Smoke Detector - Ivory

Conventional Marine Approved Photoelectric Smoke Detector - Ivory

SKU: SOC-E3NM

The SOC-E3NM is a Marine Approved Photoelectric Smoke Detector, which is fully compatible with the majority of existing Conventional Marine systems. The SOC-E3NM incorporates Hochiki’s unique High Performance photoelectric smoke chamber removing the … Read More

Key Features
  • Removable, High Performance chamber
  • Automatic Sensitivity Window Verification (ASWV) – Drift Compensation Technology
  • Remote Indicator output
  • Wide voltage range (12 ~ 30 VDC)
  • Low profile design with one piece outer cover
  • Single fire LED - 360° viewing
  • Range of mounting bases
  • Approved by LPCB & DNV-GL
Range:
Marine

Limited Availability

Description

The SOC-E3NM is a Marine Approved Photoelectric Smoke Detector, which is fully compatible with the majority of existing Conventional Marine systems. The SOC-E3NM incorporates Hochiki’s unique High Performance photoelectric smoke chamber removing the need to use Ionisation Detectors in the majority of applications. ‘ASWV’ Drift Compensation technology is incorporated to ensure the Detector is operating at its optimum sensitivity and therefore reducing potential false alarms. If the contamination limit is exceeded then the integral red LED will flash once every three seconds to give a visual warning. The smoke chamber is easily removed or replaced for cleaning and utilises a unique baffle design which allows smoke to enter the chamber whilst keeping out ambient light.

Download

SOC-E3NM.pdf
