Audio / RS485 interface

Description

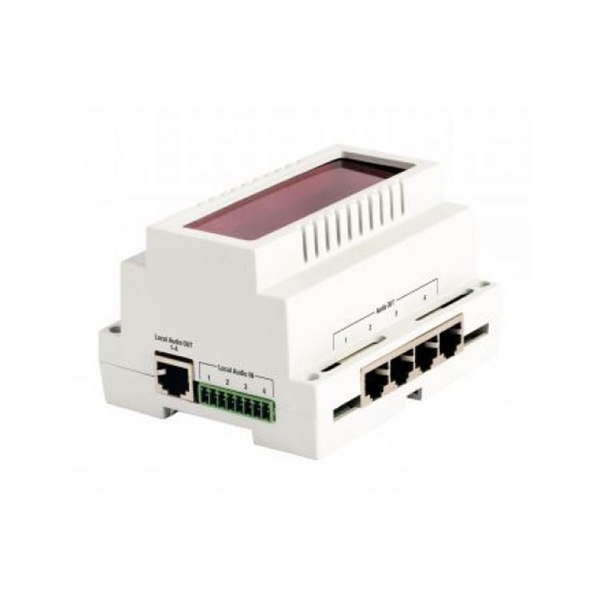

The EST-ISLE is both a communication module enabling integration with external systems via RS485 protocol, and an audio signal splitter. Address settings – Number of addresses in the range of 0-F (16 addresses). Local AUDIO IN – 4 input channels on the 8 pin connector. For easier and faster connection of audio sources, Phoenix-type connectors can be used. LOCAL AUDIO IN jack (8 pin connector Phoenix) is bridged with LOCAL AUDIO OUT (RJ-45). Output amplifiers – RJ-45 connector for the 4-channel amplifier. Local AUDIO OUT – RJ-45 connector for input signals to the system. PSM – RJ-45 connector for the link with power manager.
