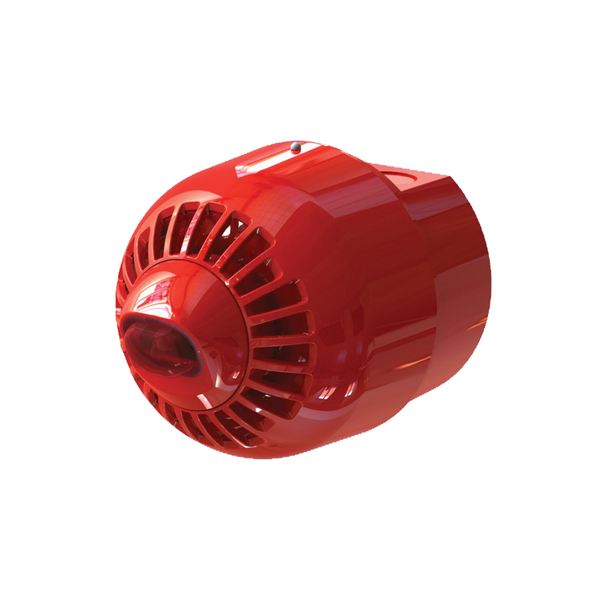

Aritech 2000 Series Wall Sndr/Beacon, MT DB, RB RL

Aritech 2000 Series Wall Sndr/Beacon, MT DB, RB RL

SKU: ASW2367

The ASW2367 is a RED bodied, deep base addressable wall mount room sounder/VAD for fire alarm systems running 2000 series fire protocol. Multiple tone selection and full CPR approval ensure conformance to local regulations. The VAD has a RED lens and… Read More

Key Features
  • Loop powered
  • High sound output with low current consumption
  • Multiple tone, output volume and varying flash frequency selection
  • Suitable for multiple stage evacuation with up to 3 pre-set tones
  • Automatic synchronisation for sounders and VADs
  • IP65 rated
  • CPR certified to EN54:3 and EN54:23

Limited Availability

Description

The ASW2367 is a RED bodied, deep base addressable wall mount room sounder/VAD for fire alarm systems running 2000 series fire protocol. Multiple tone selection and full CPR approval ensure conformance to local regulations. The VAD has a RED lens and a flash frequency of either 0.5 or 1 Hz (selectable on installation). The 2000 series sounder/VADs operate over a 2-wire 2000 series loop and are loop powered i.e. no external power supply is required. The ASW2367 is compatible with automatic phased-start synchronisation controlled from the fire panel, and has a IP65 enclosure.

Download

ASW2367.pdf
