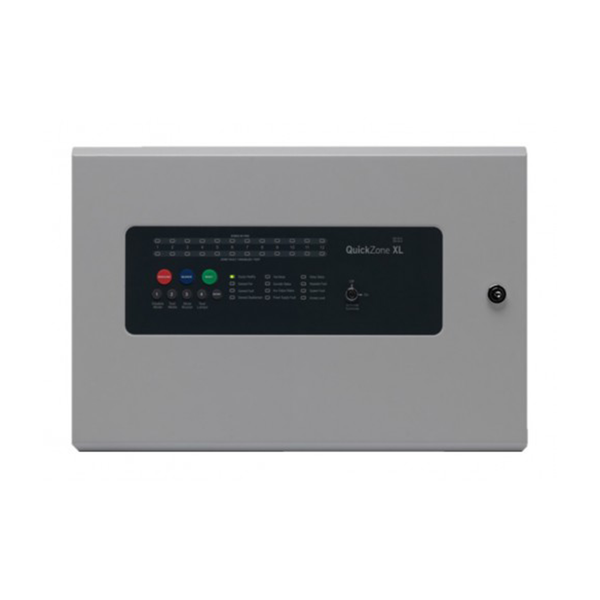

Advanced QuickZone XL - 8 Zone panel 300x450x84, Door 310x460x25 (Return)

Advanced QuickZone XL - 8 Zone panel 300x450x84, Door 310x460x25 (Return)

SKU: QZXL-8

QuickZone XL is up to 12 zone Conventional / Twin Wire (sav-wire) control panel with integral power supply & space for standby batteries. The panel continues the attributes of quality and reliability, that is easy to install, maintain, and is simple … Read More

Key Features
  • 4 to 12 Zones
  • Twin Wire selection by DIL switch
  • Fully approved to EN54-2 & 4
  • Integral 3 Amp switch mode PSU
  • Class Change & Alert programmable inputs
  • Programmable relays and outputs
  • Test Mode (with or without sounders)
  • Alarm load of 2.4A shared across all sounder outputs
  • Modular expansion zone cards available
  • 2 Additional sounder circuits with high spec expansion card
Range:
QuickZone

In Stock

Description

QuickZone XL is up to 12 zone Conventional / Twin Wire (sav-wire) control panel with integral power supply & space for standby batteries. The panel continues the attributes of quality and reliability, that is easy to install, maintain, and is simple to operate for the end user. Up to 12 fire zone circuits are provided plus two monitored sounder circuits. Fire and fault VFCO relays, Fire & Fault switched negative outputs; class change and an alert input are also included. The fire zone outputs can be set as 'Twin Wire' by DIL switch selection. The DIL switches are also used to allow Zone interface setting and Access to Level 3 mode. In Level 1, the panel will indicate if there are any faults (Supply, Fire, System, General & repeater). As well as this, the panel is capable of indicating zones in Fire, Fault and disablements and delay status. Auxiliary Output and Sounder status will be shown including if the panel is in test mode.
