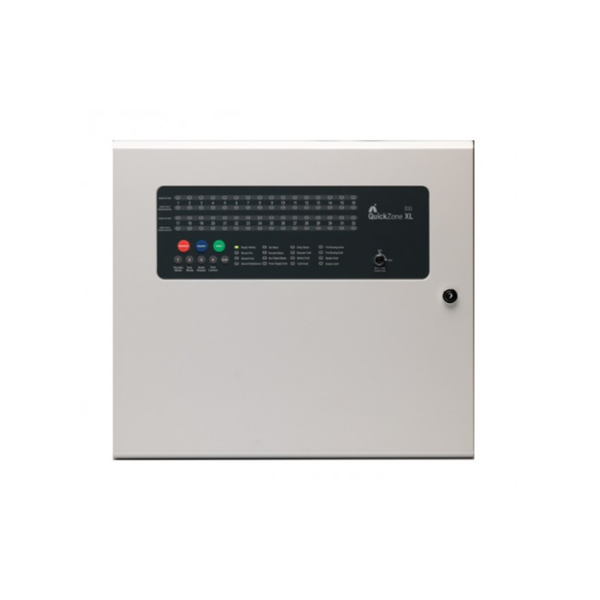

Advanced QuickZone XL 24 Zone panel 450x400x130, Door 465x410x25 (Return)

Advanced QuickZone XL 24 Zone panel 450x400x130, Door 465x410x25 (Return)

SKU: QZXL-24

The QuickZone XL 24 is a 16 to 24 Zone Conventional Control Panel with integral power supply and space for appropriate standby batteries. The panel extends the QuickZone range with the same high levels of quality and reliability, as well as remaining… Read More

Key Features
  • 16 or 24 Zones
  • 3 Modes to manage false alarms
  • One man walk test
  • Key-switch or code entry for access
  • Space for two 18AHr batteries
  • Integral 5 Amp switch mode PSU
  • Programmable relays & outputs
  • Approved to EN54-2 & 4
  • Network up to 8 control panels
  • Four monitored sounder circuits
Range:
QuickZone

In Stock

Description

The QuickZone XL 24 is a 16 to 24 Zone Conventional Control Panel with integral power supply and space for appropriate standby batteries. The panel extends the QuickZone range with the same high levels of quality and reliability, as well as remaining easy to install, maintain and simple to use for the end user. Up to 24 fire zone circuits are provided as well as four monitored sounder circuits, complete with 500mA resettable fuses. Fire and fault VFCO relays along with fire, fault, disablement and reset programmable switched negative outputs. Class change and alert inputs are also available. DIL switches within the panel are used to allow Zone Interface setting and also to allow access to level 3. Dependency modes A, B and C are available to help reduce false alarms. The panel is very cost effective and even allows for one manwalk tests.
