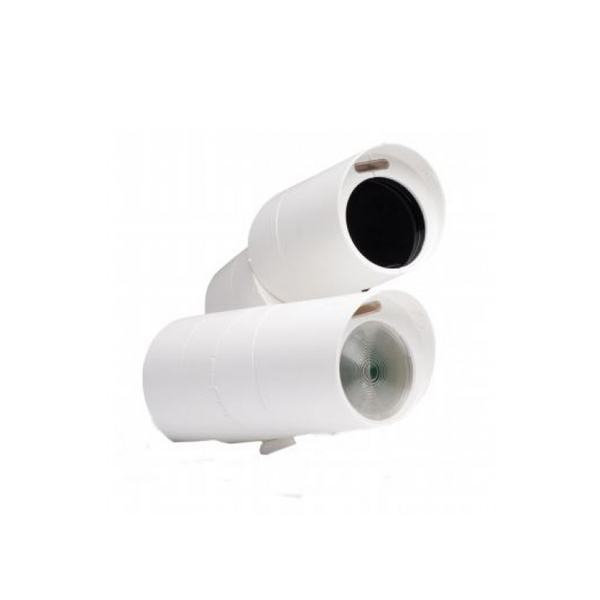

Additional Detector head pair for FD310

Additional Detector head pair for FD310

SKU: FD310H

The FD310H consist of an infrared transmitter head and infrared receiver head, for expansion of the FD310. The FD310 ground level controller is supplied with one detector pair, and can support one additional FD310H. The FD310 End to End infrared Opti… Read More

Key Features
  • Separate Transmitter and Receiver Heads
  • Range 5 to 120 metres, configurable per set of Detectors
  • Integral Laser Alignment in Receiver
  • 2-wire Interface between Controller and Receiver
  • Single and Twin Detector options
  • Separate Fire and Fault Relays per Detector
  • Low Level Controller with LCD display
  • Programmable Sensitivity and Fire Threshold
  • Automatic Gain Control (AGC) for drift compensation
  • First Fix concept for Transmitter, Receiver and Controller

Limited Availability

Description

The FD310H consist of an infrared transmitter head and infrared receiver head, for expansion of the FD310. The FD310 ground level controller is supplied with one detector pair, and can support one additional FD310H. The FD310 End to End infrared Optical Beam Smoke Detector (OBSD) has been designed using the latest optical technology, incorporating modern industrial, electronic and software techniques. This detector offers cost effective protection of large, open area spaces with high ceilings. It is also very suited to applications where access to ceiling mounted smoke detectors presents practical difficulties.

Download

FD310H.pdf
