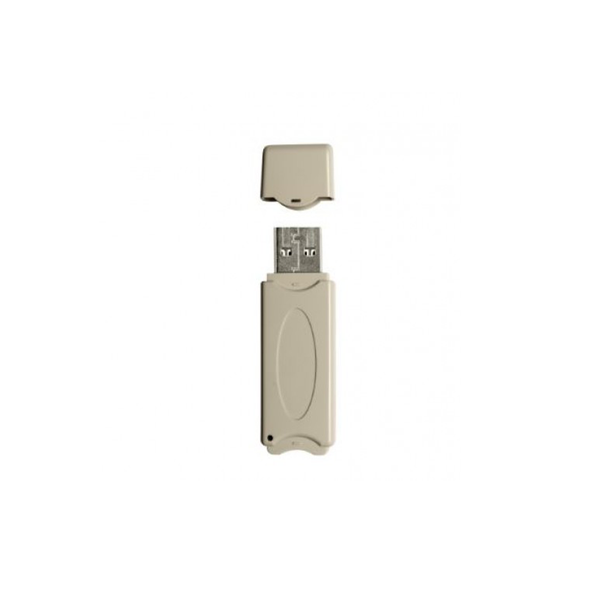

256 node network PAK

256 node network PAK

SKU: 2010-2-PAK-NET256

The 2010-2 PAK Increases the network capability to 64 nodes and 256 loops. The fire panel allows for its capabilities to be extended by use of USB dongles. These USB dongles are called PAK, which stands for Panel Activation Key. The use of the PAK wi… Read More

Key Features
  • A standard ZP2 network can support a maximum of 32 nodes (panel or repeater) or a maximum of 32 detection loops.
  • To expand the maximum number of nodes or loops on a network a PAK is required.
  • 2010-2-PAK-NET256 expands the network capabilities to a maximum of 64 nodes or 256 detection loops
  • PAK can only be used on one panel therefore a PAK is required for each panel/repeater on the network.
  • PAK is linked to panel by serial number
  • Compatible with firmware 3.1 or higher
Range:
ZP2

Limited Availability

Description

The 2010-2 PAK Increases the network capability to 64 nodes and 256 loops. The fire panel allows for its capabilities to be extended by use of USB dongles. These USB dongles are called PAK, which stands for Panel Activation Key. The use of the PAK will activate additional high-end feature(s) in the panel. Depending on the required functionality, separate and multiple PAKs can be used to enable these functionalities. Functionalities like number of nodes/loops, supported detector protocol, used TCP/IP communication protocol for remote monitoring, communication towards management software like BACNet or Modbus, etc, can be enabled by usage of the PAKs. The PAK is tied to the serial number of the panel, but does not have to stay connected to the panel. It can be removed once the PAK has been installed, and the feature is enabled in the panel. It is therefore recommend that PAKs stays with the panel at all time, for example in case of performing reset functions or re-installations.
