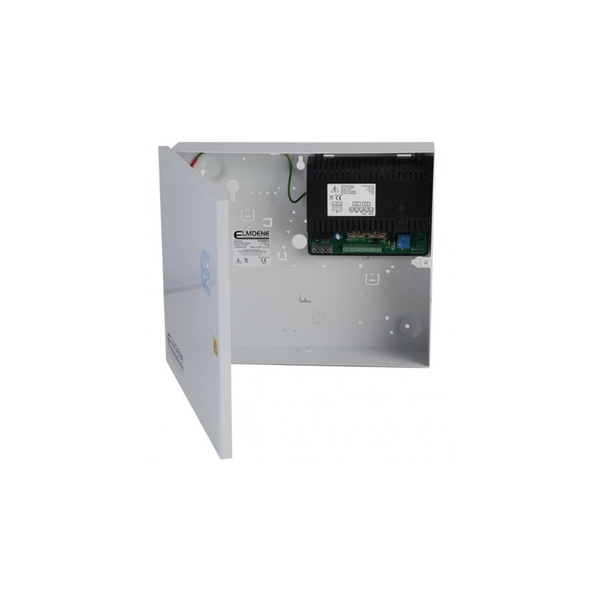

24Vdc 5A+ 0.8A Switch Mode PSU (EN54 Approved) [C]

SKU: STX2405-C

Key Features

Certified by UL to EN54-4:1997 +A1: 2002 + A2: 2006
Up to 5A current to load at 27.6V dc nominal regulated output
Charging capability to support 7 or 17Ah batteries
Electronic overload protection shuts down output until overload or short circuit is removed
Battery Monitor detects battery missing, low battery, short-circuit or reverse connection
Battery charging circuit is energised only when a battery is correctly connected and the battery voltage is greater than 14V
No loss of output during automatic connection of battery to load on loss of mains
Deep discharge protection disconnects battery from load when battery voltage falls below 21V
Diagnostic indicator LED (Orange) (Internal)
Fault indicator LED (Yellow) flashes on detection of output fault, battery fault, charger fault and mains failure

Description
Downloads

Description

The STX2405 is an EN54-4 approved power supply ideal for use in Fire and Smoke and ventilation control Systems. Its regulated 27.6V dc output will supply up to 5 Amps continuous into the load, in addition to providing up to 850mA for charging the standby batteries up to 17Ah. The power supply output features electronic short circuit protection under both mains and standby battery operation. Maximum battery life is assured through continuous active battery monitoring and the use of a two stage charger, comprising bulk and temperature compensated final float phase depending upon battery condition. Once fully charged the product operates in Eco power saving mode, whereby it will check and top up battery charge every 24 hours, but will not waste energy by continuously attempting to charge a fully charged battery. This also extends the operating life of the batteries. Deep discharge protection prevents premature battery failure when operating from standby for extended periods.
