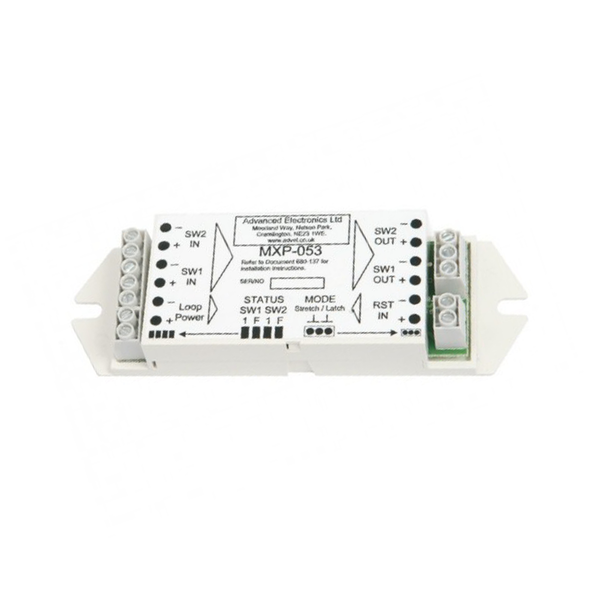

2-way Input Stretch / Latch module

2-way Input Stretch / Latch module

SKU: MXP-053

The Mxp-053 Input Latch / Stretch Module will provide monitoring for two momentary switch inputs. The module can be configured for Latch or Stretch Modes of operation. The module can be configured for wiring supervision using the End-of-Line resistor… Read More

Key Features
  • Two modes of operation - Latched or Stretched Monitored or Non-monitored connectivity
  • Loop powered Configurable for Advanced, Apollo, Hochiki and Nittan input circuits
  • The module can be loop powered
Range:
MxPro 5

In Stock

Description

The Mxp-053 Input Latch / Stretch Module will provide monitoring for two momentary switch inputs. The module can be configured for Latch or Stretch Modes of operation. The module can be configured for wiring supervision using the End-of-Line resistor of the host input device. A reset input is provided for the reset of a latched condition. Can be used to monitor the operation of a momentary switched input that has been interfaced to the fire alarm control panel via loop devices or onboard inputs. Two modes of operation are available for momentary switched operation, Latched or Stretched (30 Seconds). Can be powered by a separate 24V DC supply, or loop powered.
