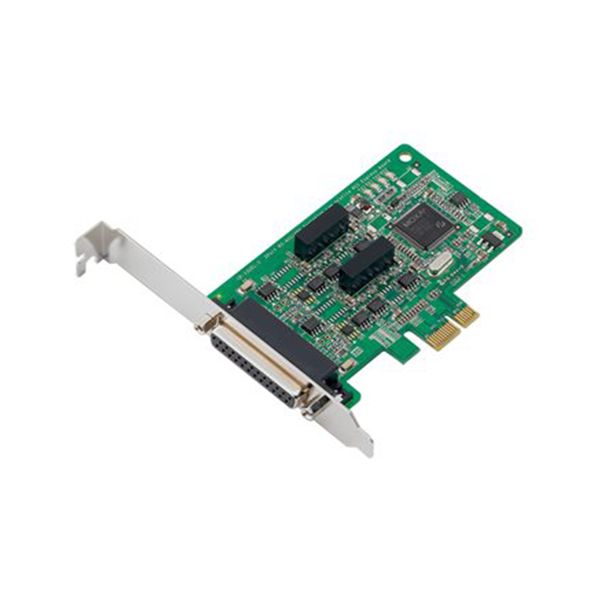

2 Port RS 422/485 PCI express connection to ZP3 network

2 Port RS 422/485 PCI express connection to ZP3 network

SKU: CP-132EL-I

The CP-132EL Series of 2-port PCI Express boards are designed for industrial automation applications that require a long-distance, multipoint, PC-based data acquisition solution. RS-485 Multidrop for up to 31 Devices Within 1.2 km. The CP-132EL Serie… Read More

Key Features
  • PCI Express 1.0 compliant
  • 921.6 kbps maximum baudrate for fast data transmission
  • 128-byte FIFO and on-chip S/W flow control
  • Low-profile form factor fits small-sized PCs
  • Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
  • Easy maintenance with built-in LEDs and management software

Limited Availability

Description

The CP-132EL Series of 2-port PCI Express boards are designed for industrial automation applications that require a long-distance, multipoint, PC-based data acquisition solution. RS-485 Multidrop for up to 31 Devices Within 1.2 km. The CP-132EL Series boards have two RS-422/485 serial ports, each of which can achieve data rates up to 921.6 kbps. In RS-485 mode, the boards can connect up to 31 daisy-chained RS-485 devices within a range of 1.2 km. For long-distance RS-485 communication, choose the CP-132EL-I model, which comes with 2 kV electrical isolation protection to prevent equipment damage.

Download

CP-132EL-I.pdf
