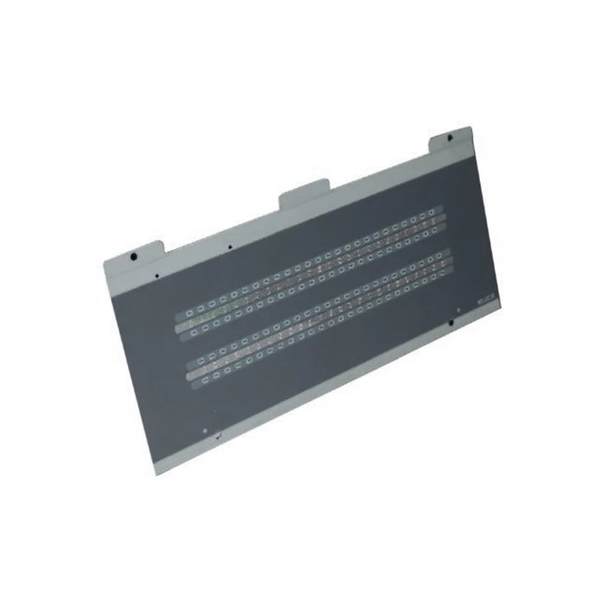

19 Rack Mount 4U LED Card - 100 Zone FIRE/FLT (R/Y)

Description

The LED indicator cards are a range of panel mounted peripheral modules that can be added to the MxPro 5 series of control panels. The display cards are available in numerous configurations and provide individual indication of the zone(s) in Fire by default but are also fully programmable. The units fully support dynamic zoning, on networked or larger standalone systems, and can be used to provide individual zonal LED indication at one location. The zone/LED indicator card can be fitted to all MxPro 5 control panels to provide indication of the zone(s) in fire in addition to the panel graphical display. The LED will illuminate when the corresponding zone enters a Fire condition. This next generation in LED technology also allows the LED to be fully programmed. Each LED can now operate in accordance with the cause-and-effect strategy in which the LED can illuminate upon Fault, Isolation, Output Group plus many more. LED cards can now be ordered with Red and Yellow LED arrangements or provided with bi-colour LEDs with slide-in labels to assist identifying the origin of the condition.
